Cutting edge technology in high-speed marine crafts production
JSC «VERF-77» was founded in 2020 by a group of specialists with more than 10 years of experience in defense and security fields supplying high-tech systems and providing operational readiness to Russian law enforcement agencies.
We are dedicated to creating and developing a leading-edge production process of high-speed marine crafts for protection of Russian maritime borders and anti-terrorist and rescue operations at sea. Our team has launched production of three types of high-speed boats under license from PT Lundin (Sweden, Indonesia).
VERF-77 has developed solutions for integration of Russian technology and advanced weapon systems with PT Lundin's boat designs, project work schedules have been approved.

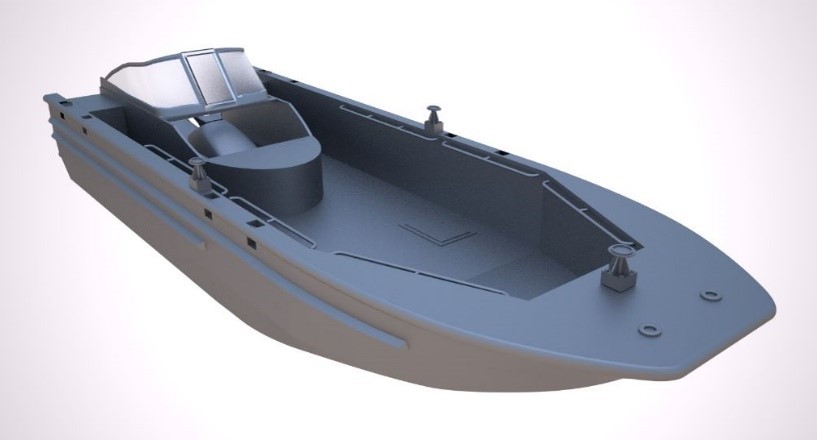

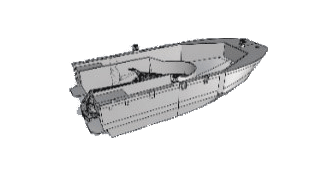

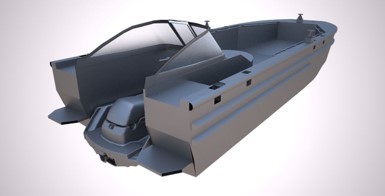

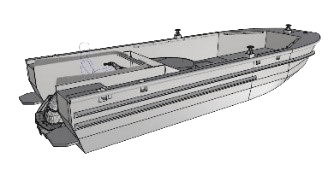

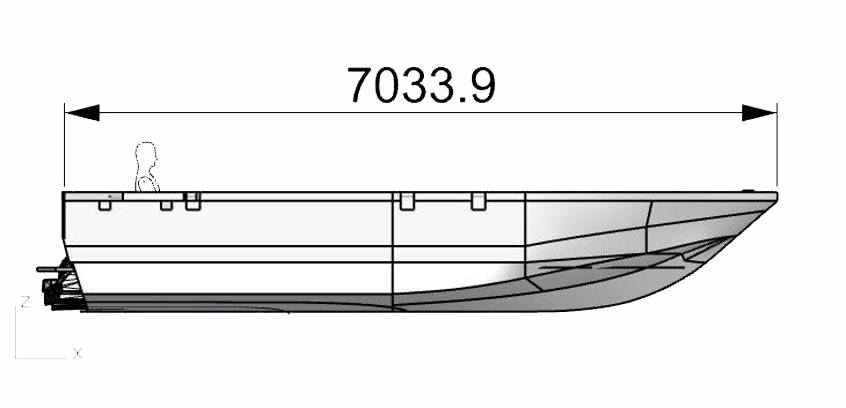

Patrol, river crossing, shallow water operations on internal waterways and coastal waters
■ Buoyant HDPE hull
■ High speed watercraft with an integrated powerful jet ski
■ Add-on armor plates, gun mounts or special equipment can be installed on the platform

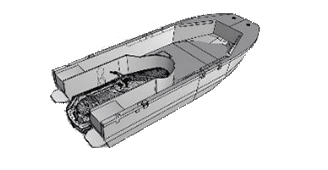

■ Jet ski is located in the center of the platform, secured by special fastening in a position that is best protected from small arms fire
■ Transport - up to 8 persons
■ Landing - 6 persons + 3 mounts
■ Assault - 12,7 mm remote weapon system, grenade launcher or drone
■ Unmanned-assault, reconnaissance, kamikaze, underwater/surface/air drone carrier
■ Operational versatility
■ Changing of the buoyant platform allows for quick operation mode switch. Propulsion can be provided by a jet ski with an operator or by a remote-control propulsion unit.
■ The jet ski is located in composite armor section that enabling higher endurance compared to other boats. Add on armor plates can be mounted on the platform’s perimeter.
■ Universal fastening mechanism allows for quick jet ski attachment and detachment
■ Universal fastening mechanism can be used with various jet ski models depending on the mission. The recommended model is BRP, but it can be switched to jet ski of Chinese manufacture, which are currently limited to 170 h.p. Electric jet ski «Taiga» can also be used with the platform.
■ A cheap and durable small watercraft solution for internal waterways or coastal waters. TP-8 series can be used at sea at sea states of up to 2.

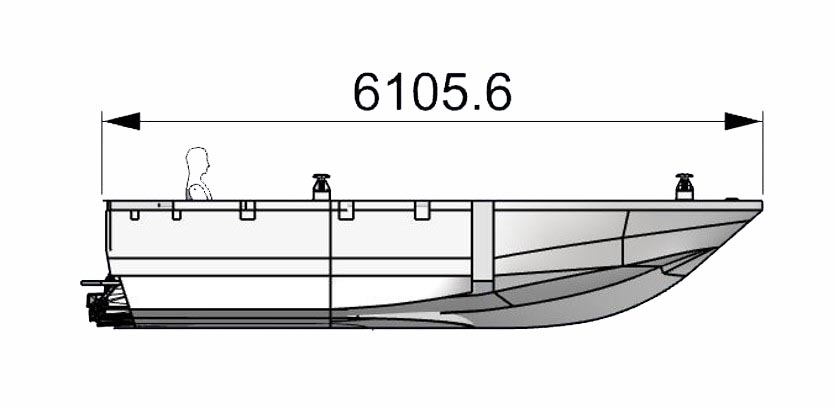

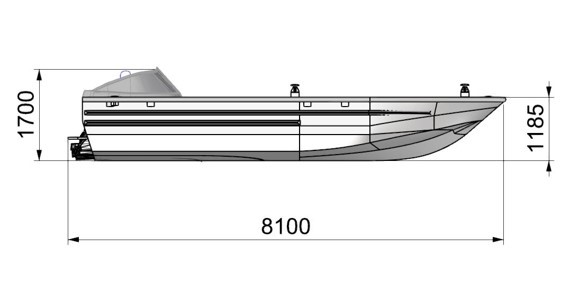

| Specifications | TP-6 | TP-7 | TP-8 |
 |  |  | |
| Length, m | 6,1 | 7,05 | 8,1 |
| Beam, m | 2,6 | 2,6 | 2,6 |
| Recommended propulsion, h.p. | 170 | 230 | 300 |
| Cruising speed, km/h | Up to 50 | Up to 60 | Up to 75 |
| Payload, kg | 600 | 800 | 1000 |
| Passengers (operators + pilot), pers. | 4+1 | 5+1 | 6+1 (8+1)* |
| Weapon capability | - | Mount 7,62 - 1 pcs. | Mount 12,7 - 1 pcs. Mount 7,62 - 2 pcs. |

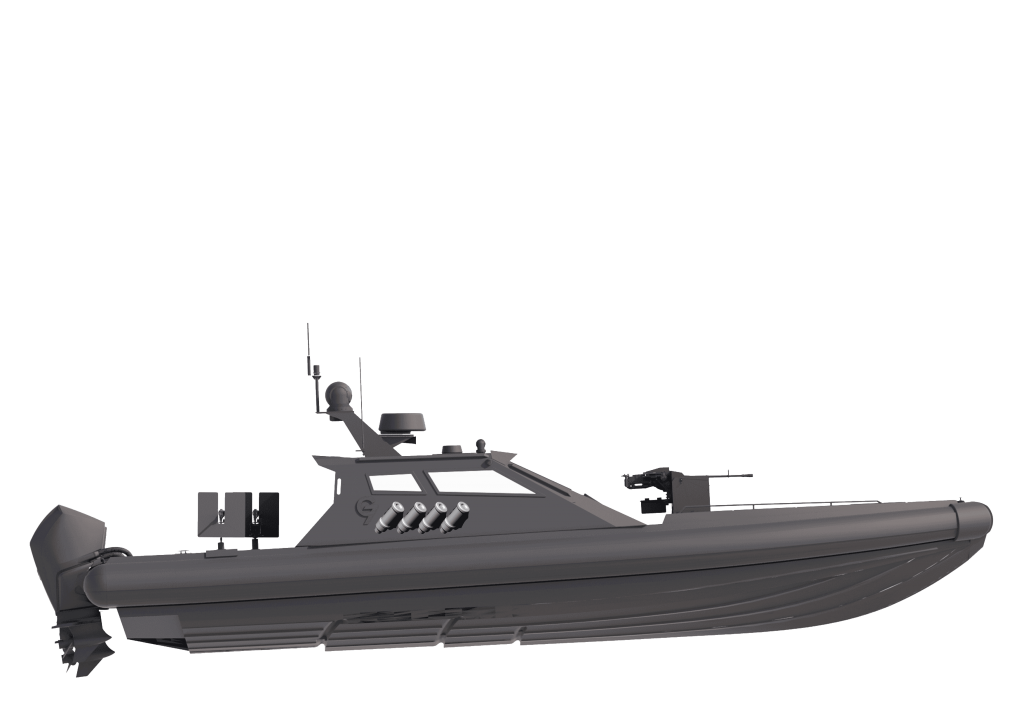

Fast interceptor with reinforced hull and closed cabin
■ G7 offers the advantages of seaworthiness, stability and speed from an exceptional race proven triple stepped deep V hull. Created with vacuum infused carbon fiber, the hull is capable of withstanding structural impacts of more than 7G. G7 can be transported by air transport.
■ Low visibility stealth profile and use of composite materials makes it difficult to detect G7 using modern radars
■ Polyurethane fabric, D Shaped collar with seamless structure
■ The deck provides space for several work stations, the non-skid surface guarantees secure footing even in the most challenging conditions
■ Carbon fiber shock mitigation seats minimizing physical fatigue
■ Cargo tracks allow for various seat configurations and equipment placement
■ Towing points – one at the bow, two at transom; a total of four lifting points
■ Cabin, doors and windows are protected with Class 4 (GOST-R 50744-95) armor plates (option when ordering)
■ Collapsible foam filled fuel cells provide stability and fire protection
High resolution doppler radar with CHIRP pulse compression. Inertial navigation system. Stabilized Electronic optics sensor. Multifunctional displays with sea charts installed. GPS/GLONASS receivers. AIS system. Digital depth, temperature and speed log sensors.
VHF marine radio; combat radio with protected channels for battle coordination. Internal wireless protected communication system with GPS module. Intercom, ethernet, IP and Wi-Fi access.
| Length, m | 11,80 |
| Beam, m (inflated collar) | 2,85 |
| Draught, m | 0,80 |
| Displacement, kg | 3100 |
| Range, NM | 250 |
| Maximum sea state | 3 |
| Propulsion | 3 х Mercury Vеrаdо 450R |
| Maximum speed, knots | 70 + |
| Cruising speed, knots | 55 |
| Crew, persons | 4+6 |
Option 1
■ 12.7 mm remote weapon system «NARVAL» - 1 pcs.
■ 12,7 or 7,62 mm MG with optic systems – 2 pcs.
Option 2
■ 12.7 mm remote weapon system «NARVAL» - 2 pcs.
Option 3
■ 12,7 or 7,62 mm MG with optic systems – 2 pcs.
■ GSHG MG – 1 pcs.
Option 4
■ 12,7 or 7,62 mm MG with optic systems – 2 pcs.
■ Compact portable assault station «Lancet» FH-901/FH-901А – 10 pcs.

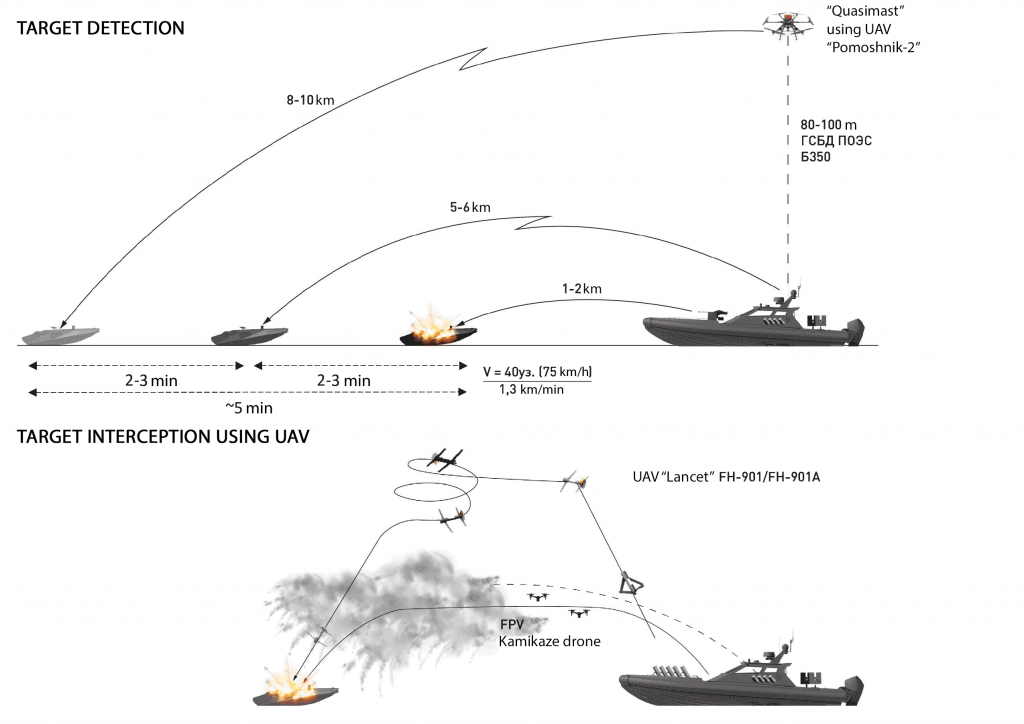

G7 is a high-speed versatile interceptor boat, a very important missing link in the lineup of small displacement battle ships. Having considerable firepower this boat can act on its own in interception, boarding, USV elimination and reconnaissance missions delivering swift and unpredictable strikes.
■ Low visibility profile on radar
■ High speed, mobility and maneuverability
■ Sea, coastal waters or river deployment
■ Boarding operations capability
■ Precise firing on various targets close range and at long distances, in any weather conditions, day or night
■ Covert transport and storage inside a standard sea transport container.
The G7 offers the advantages of seaworthiness, stability and speed from an exceptional race proven triple stepped hull. The longer than average length enables it to maintain higher speeds in rough conditions, making it ideal for insertion of Special Forces, high-speed pursuits, and boarding operations. These features also make it well suited for pursuit and law enforcement roles.

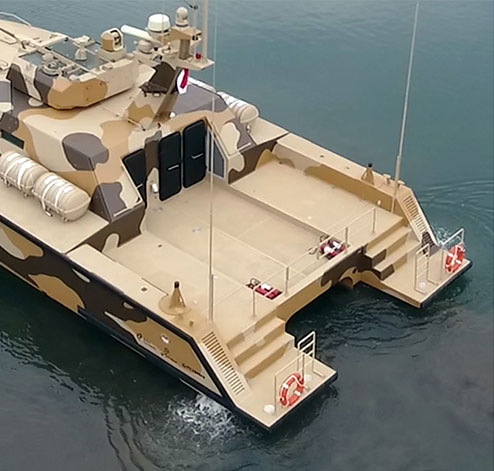

Assault catamaran
| Length, m | 18,97 |
| Beam, m | 7,50 |
| Draught, m | 0,9 |
| Displacement, t | 43 |
| Range, NM | 600 |
| Maximum speed, knots | 50 |
| Cruising speed, knots | 40 |
| Maximum sea state | 4 |
| Autonomy, days | 2 |
| Main engine | 2х1700 diesel MAN |

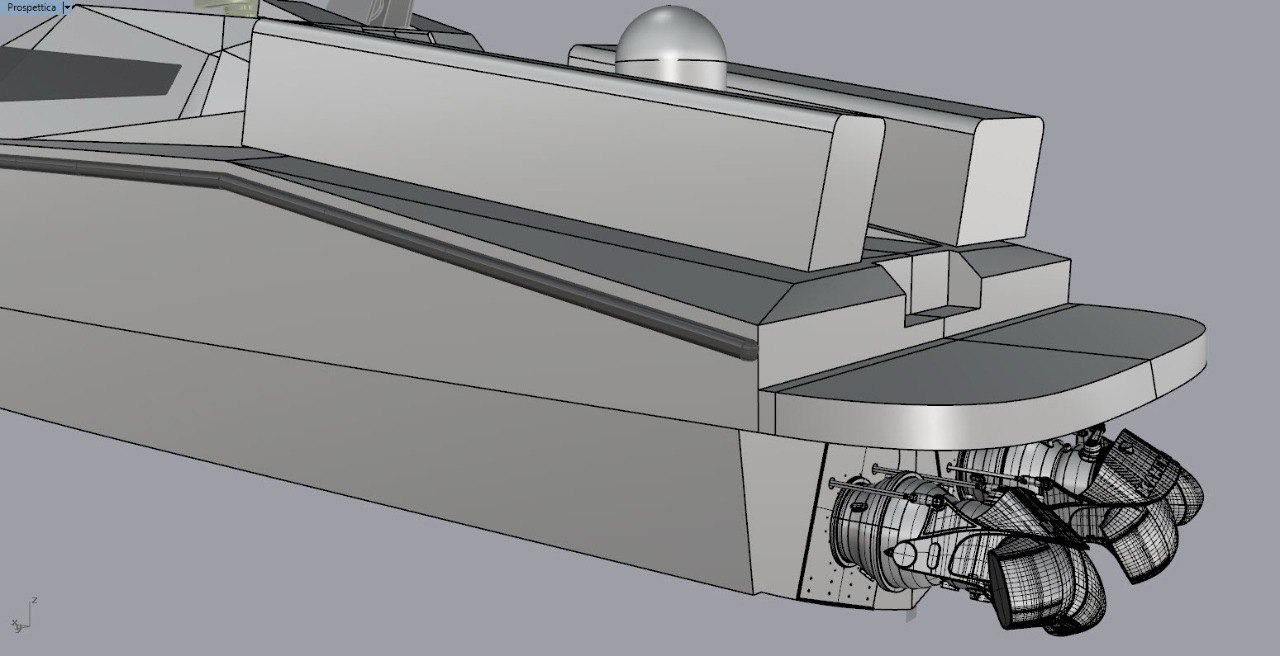

| Propulsion | 2 waterjets |
| Crew, persons | 4 |
| Operators, persons | 48 |

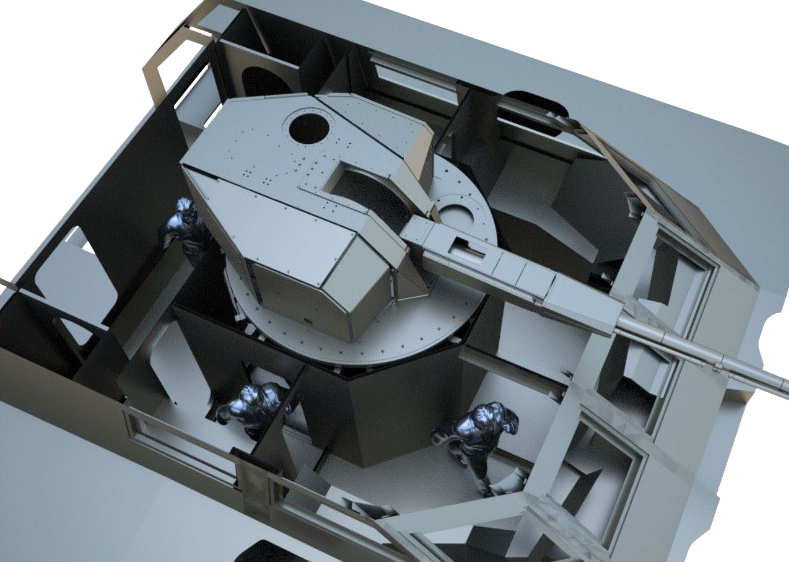

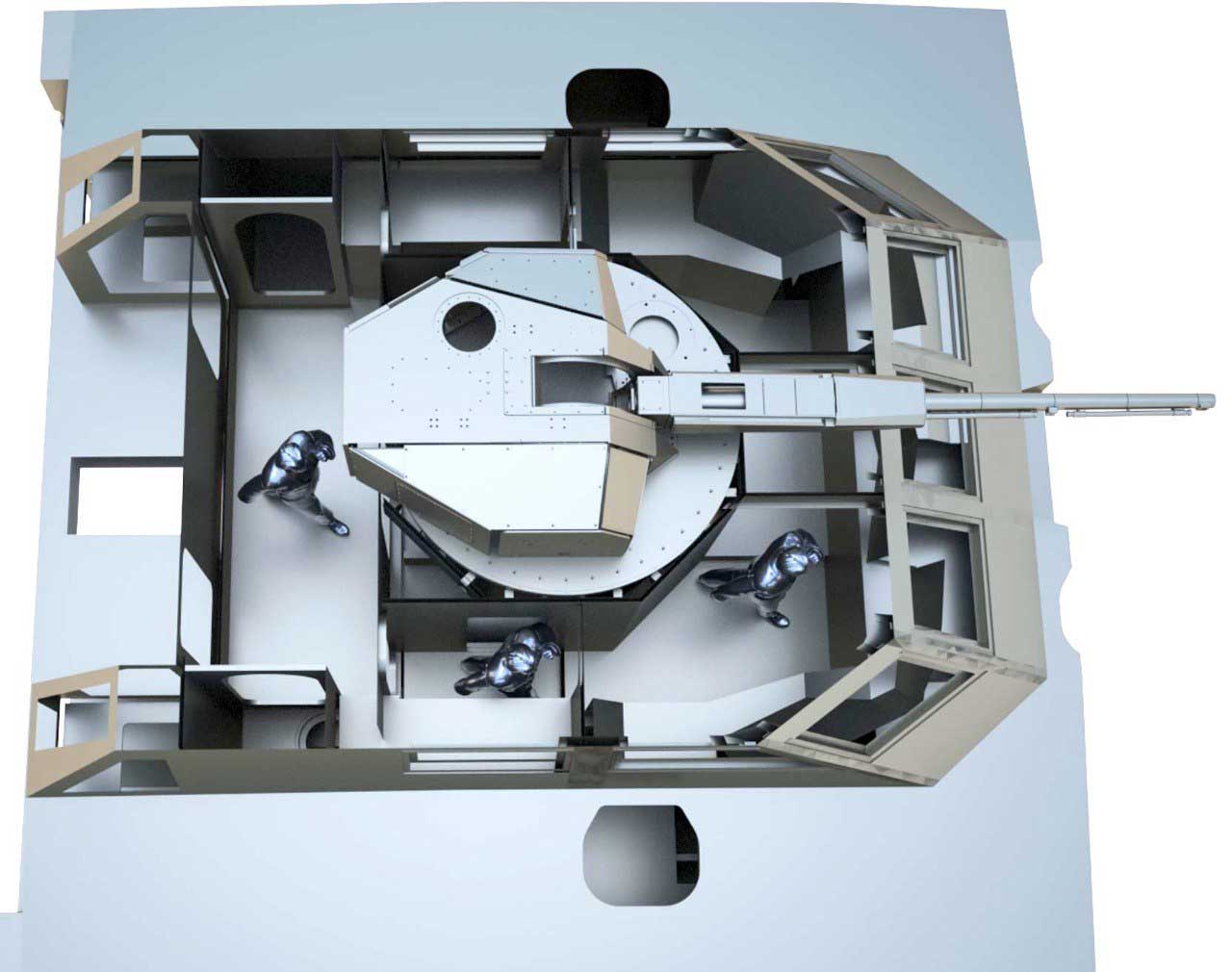

57 mm remote weapon system or «Derivaciya PVO» 57 mm. Up to four 12.7 mm gun mounts for KORD MG. Automatic grenade launcher 40mm.

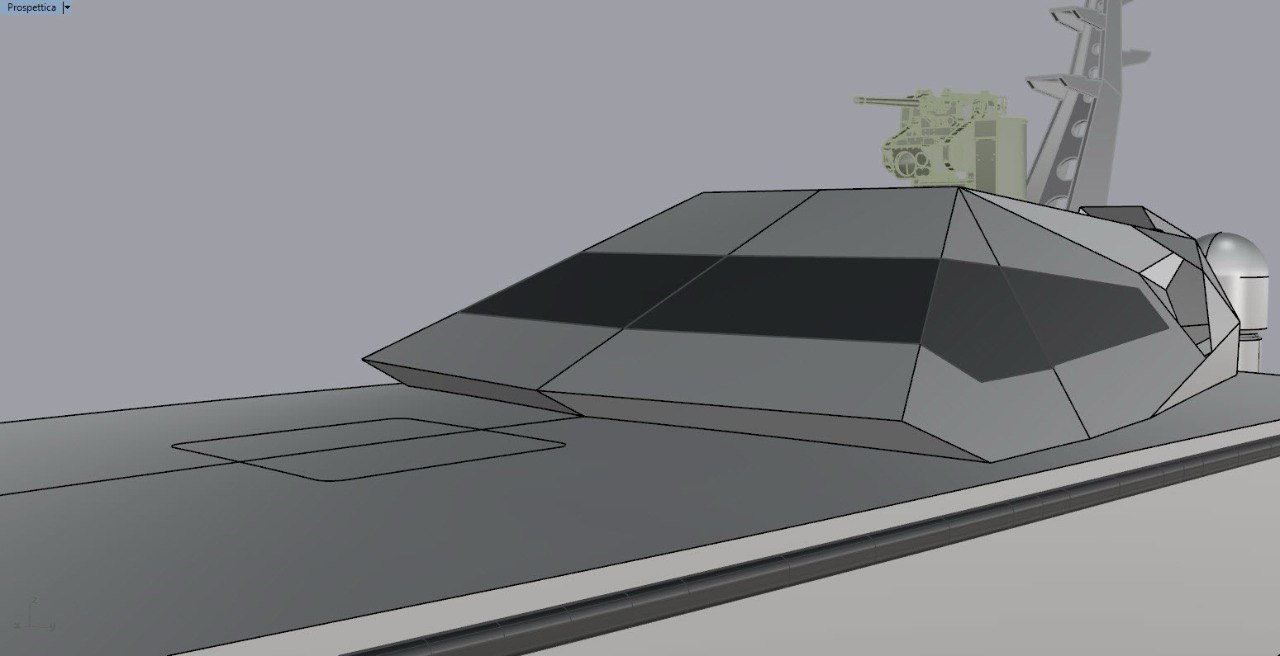

X18 catamaran is a double hull high-speed maneuverable boat built using stealth technology. Hull design enables the use of heavy weapon systems. Cabin, doors and windows are protected with composite armor. The boat has a low visibility profile and the added advantage of shallow draft, giving it the ability to execute beach and river landings and insert or extract squads in shallow waters.
Built with multilayered multidirectional carbon fiber composite with corecell foam core fused using vacuum infusion technology.
The deck is covered in non-skid material. Boat color is chosen according to the customer's requirements.
Cargo tracks on the deck and boat sides provide for custom seat configurations and cargo placement.
Two towing points at the bow and high load towing point at transom. Aft deck can carry up to five tons of equipment and drones.
Shock mitigating carbon fiber seats for crew and operators.
| Rate of fire, shots/min | 120 |
| Range, km,: maximum maritime targets air targets land targets | 12,0 9,5 6,0 9,5 |
| Horizontal/vertical aiming angles, degrees | ±120/ -5 ..+75 |
| Aiming speed VN /GN/ target switch, degree/sec | 40/60/80 |
| Ammunition, pcs. | 100 |
| Ammunition reserve, pcs. | up to 500 (5 ammo kits) |
| Target detection range, km: surface target similar to BK-16 airplane UAV light armor land vehicles armored personnel carrier | 10 15 6 6 |
| Dimensions, mm: length width height | 5730 (3750) 3400 2950 (2550) |
| Projectile type | Fragmentation Tracer Round | Multifunctional with a remote-contact fuse | Armor-piercing sub-caliber |
| Target type | Maritime, enemy manpower | Maritime, air, enemy manpower | armored personnel carrier, protected air targets |
X18 is a high-performance versatile boat, it combines surveillance, protection, and support at a reasonable cost. It is a necessary addition to the existing surface fleet of small displacement boats.

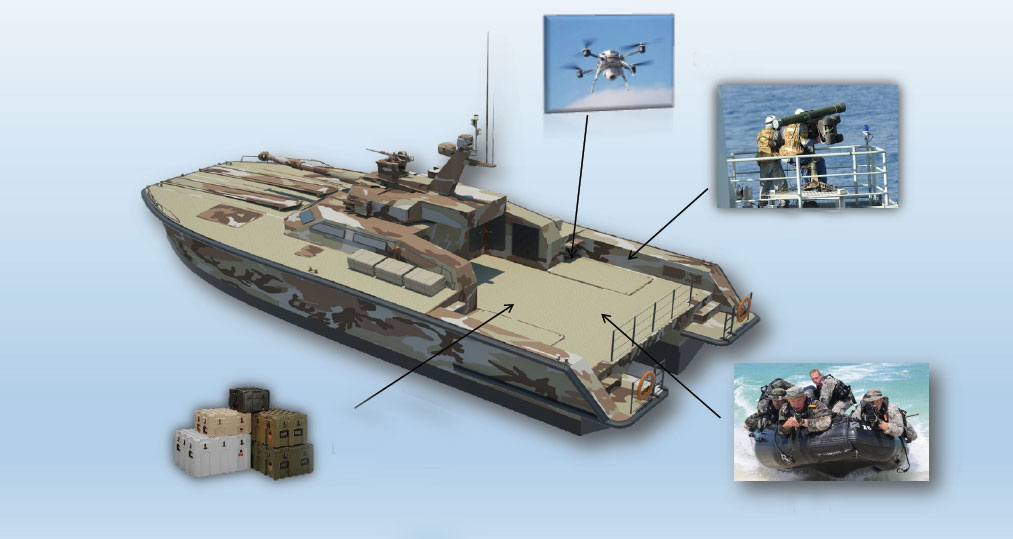

Combining high-speed, substantial firepower with high load and troop capacity, X18 is ideally suited for amphibious deployment of commandos and assault missions, it can serve as a versatile carrier boat for sea and air unmanned vehicles and FPVs.

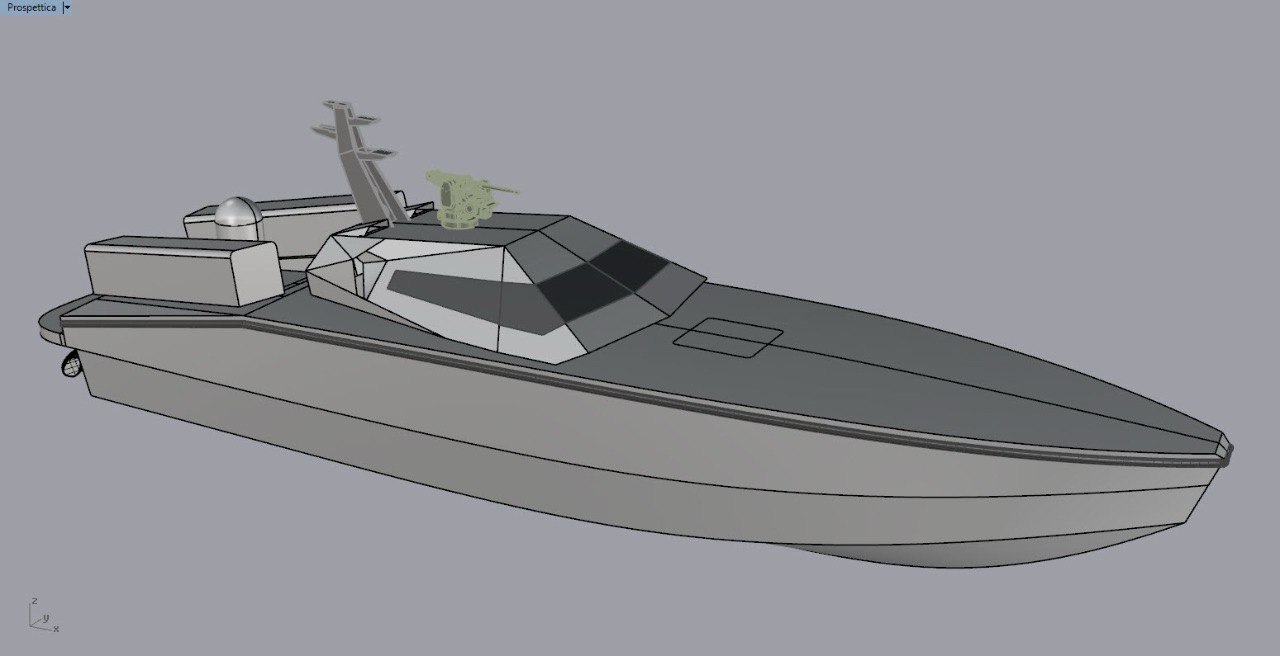

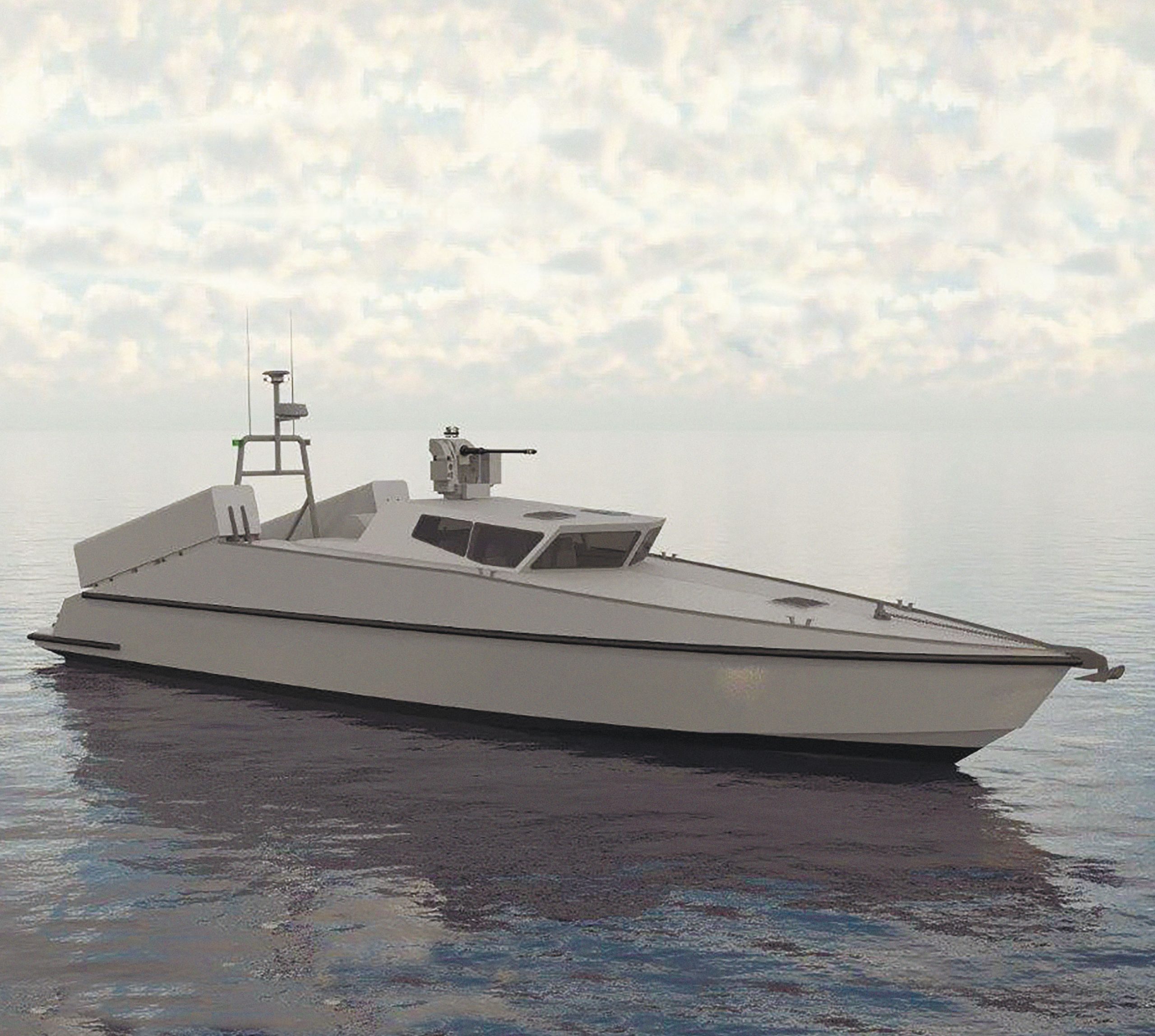

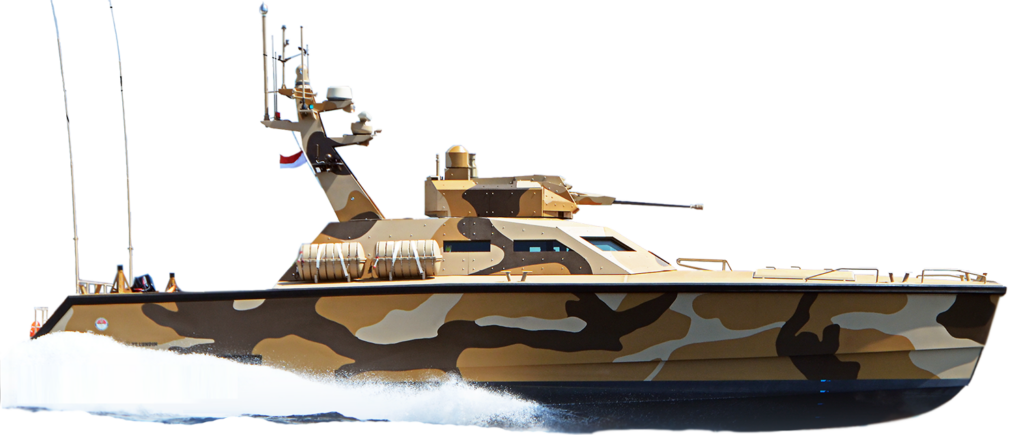

High speed assault boat
| Length, m | 20 |
| Beam , m | 4,6 |
| Height , m | 4 |
| Draught, m | 1,2 |
| Displacement, t | 33 |
| Maximum speed, knots | 50+ |
| Cruising speed, knots | 35 |
| Main engine, h.p. | 2 x 2000 MAN VI2-2000, at 2300 RPM |
| Propulsion | 2 х waterjet KONGSBERG KAMEWA S-40-3 /СА |
| Electric generators, kWt | 2х11 |
| Fuel capacity, litre | 5000 |
| Fresh water capacity, litre | 600 |
| Range, NM at 30 knots at 9 knots | 330 600 |
| Crew, persons | 6+8 (crew + operators) |
12.7 mm remote weapon system «Narval» or «Derivaciya PVO» 57 mm.
Anti ship missiles complex «Uran» or versatile guided missiles "305" (LMUR) or other weapon systems upon request from the customer.
Built with multilayered multidirectional carbon fiber composite with corecell foam core fused using vacuum infusion technology.
Has a low radar profile.
Capable of high-speed maneuvering in adverse weather conditions.
X19 is a high-speed assault boat is designed for patrol and interception roles in blue water and coastal areas. X19's impressive firepower, excellent sea keeping and state of the art electro-optical equipment enable it to strike unexpectedly and quickly, proving a highly effective, versatile and effective combat unit that is a necessary addition to the existing surface fleet.
The use of small missile boats in addition to traditional military ships allows commanders to push the boundaries of combat ability by improving readiness and mobility, enabling shallow water operations while maintaining significant firepower.
Each boat is a unique product created with specific end use in mind, developed in close contact with the client according to their mission goals.
Using modern production equipment and latest software, our team of highly skilled engineers and experts focus on delivering a custom solution tailored to the client’s mission requirements.
A large network of Russian and international partners specializing in boat equipment production enables us to cooperate with hundreds of manufacturers to make sure each part of the boat meets high quality requirements.
A modern, environmentally friendly assembly facility ensures high quality and on-time delivery. We ensure operational reliability throughout the entire life cycle.
